Vintage Air install on 78 Wagoneer

Full Size Jeeper · Post by **Full Size Jeeper** » Fri Jul 10, 2020 9:09 am

Here are the holes in the firewall that we cut for the heater hoses.

Full Size Jeeper · Post by **Full Size Jeeper** » Fri Jul 10, 2020 9:17 am

Then I used a jigsaw to cut across from hole to hole. I need all that length so we have room to slide the 90 degree bent heater hose on to the heater core.

Full Size Jeeper · Post by **Full Size Jeeper** » Fri Jul 10, 2020 9:20 am

These plates will have a weatherproof grommet that the heater hose will pass through.

Full Size Jeeper · Post by **Full Size Jeeper** » Fri Jul 10, 2020 7:11 pm

The evaporator comes with two brackets. The main one bolts it to the firewall, the other one bolts to the dash. I guess they don't want it hanging and possibly breaking the case. The bracket needs to be modified. This is what I did. Cut this piece off of my parts Wagon.

Full Size Jeeper · Post by **Full Size Jeeper** » Fri Jul 10, 2020 7:13 pm

Full Size Jeeper · Post by **Full Size Jeeper** » Fri Jul 10, 2020 7:16 pm

This is what we came up with.

Full Size Jeeper · Post by **Full Size Jeeper** » Fri Jul 10, 2020 7:18 pm

This is it under the dash, it sits on that bottom lip of the dash.

Full Size Jeeper · Post by **Full Size Jeeper** » Fri Jul 10, 2020 7:22 pm

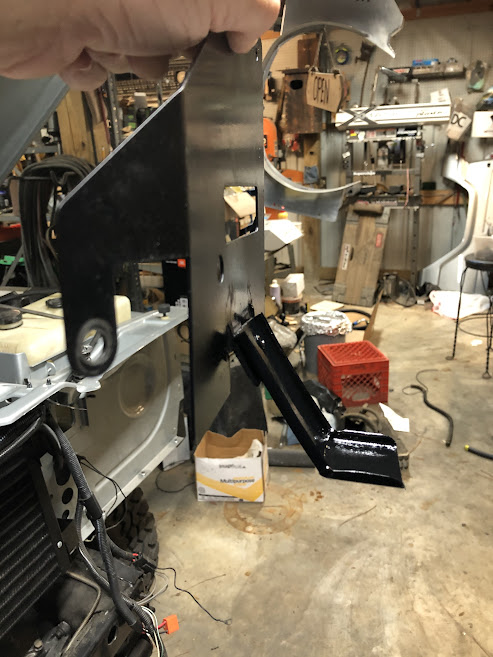

This is it all welded up and painted. Will try and bolt it in tomorrow.

Full Size Jeeper · Post by **Full Size Jeeper** » Thu Jul 16, 2020 9:48 am

I cut huge ovals in the firewall because I needed the space to get the heater hose with the 90 degree bend on the fitting inside the jeep. Before you start cutting up your firewall, they do make different hard lines bent at different angles, but it will make it harder to get the evaporator in if the dash is already in, like mine was.

Full Size Jeeper · Post by **Full Size Jeeper** » Thu Jul 16, 2020 9:51 am

Full Size Jeeper · Post by **Full Size Jeeper** » Thu Jul 16, 2020 10:00 am

Also the glove box won't fit because of where I mounted the evap. I started cutting it up. Not sure if I will ever get it back together, we will see.

Full Size Jeeper · Post by **Full Size Jeeper** » Thu Jul 16, 2020 10:02 am

sonoraed · Post by **sonoraed** » Thu Jul 16, 2020 9:55 pm

Creativity is the mother of invention!

Sent from my iPad using Tapatalk

Full Size Jeeper · Post by **Full Size Jeeper** » Sat Jul 18, 2020 4:16 pm

Defrost ducts are in. If you can get these in before the dash is installed, do it. Drivers side is easier to do with the cluster out.

Full Size Jeeper · Post by **Full Size Jeeper** » Sat Jul 18, 2020 4:20 pm

I put sealer around the vent where it contacts the under side of the dash. Probably didn't have to do that, but I did.

Full Size Jeeper · Post by **Full Size Jeeper** » Sat Jul 18, 2020 4:20 pm

Full Size Jeeper · Post by **Full Size Jeeper** » Sat Jul 18, 2020 4:24 pm

Also received my 12 inch electric fan and a few fitting from summit. Going to use it as a pusher, no room on the other side of the radiator.

Full Size Jeeper · Post by **Full Size Jeeper** » Sat Jul 18, 2020 4:31 pm

https://lh3.googleusercontent.com/pw/AC ... authuser=0

sonoraed · Post by **sonoraed** » Sun Jul 19, 2020 9:45 pm

Coming right along!,

Sent from my iPad using Tapatalk

irondawg · Post by **irondawg** » Tue Jul 21, 2020 10:42 am

Looking good!
